Created with Pixso. LN8313D24-001 120KV Drone motor for 40-50inch drones/eVTOl

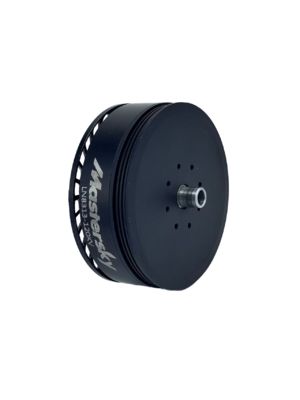

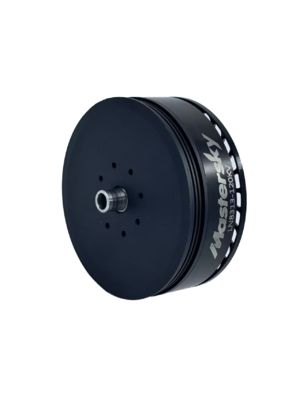

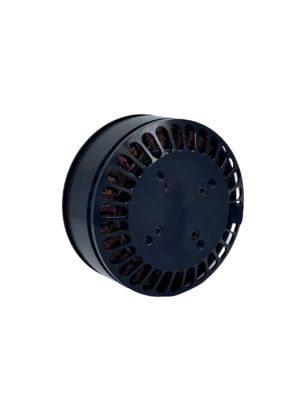

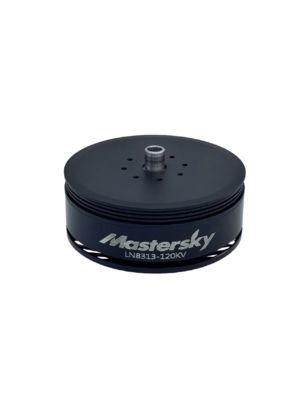

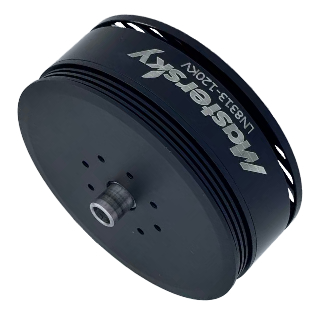

LN8313D24-001 120KV Drone motor for 40-50inch drones/eVTOl

ব্র্যান্ডের নাম: Retek
মডেল নম্বর: ইস্পাত গিয়ার
MOQ.: 1000
মূল্য: আলোচনা সাপেক্ষে
বিতরণ সময়: 14 দিন
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
CCC, UL
প্যাকেজিং বিবরণ:
25 পিসি/কার্টন
যোগানের ক্ষমতা:
10000 পিসি/মাস
পণ্যের বিবরণ

The motor model LN8313D60-001 (120KV) has a rated voltage of 60VDC and rotates counterclockwise (CCW) from the shaft extension end.



It has significant advantages. The power assembly is lightweight (only 0.95Kg) but can provide a maximum thrust of 15.3Kg, resulting in a high power density. It has excellent current control performance, with a continuous working current of only 14A, leading to high energy efficiency. At the same time, its performance indicators in terms of vibration, noise, and insulation are strict, ensuring strong operational stability and reliability.





  • Rated Voltage: 60VDC
  • Motor Rotation Direction: CCW rotation;
  • Motor Withstand Voltage Test: ADC 600V/3mA/1Sec
  • No-Load Performance: 3600±10% RPM (Revolutions Per Minute) / 1.5A Max (maximum current)
  • Load Performance: 2770±10% RPM / 75.9A±10% / 13.7N·m (Newton - meter, torque)
  • Motor Vibration: ≤7 m/s²
  • Backlash: 0.01 - 0.2mm
  • Noise: ≤60dB/1m (ambient noise ≤45dB during testing)
  • Insulation Class: CLASS F
  • Motor Operation: No abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play during operation
  • Motor Appearance: Clean and free of rust
