| ব্র্যান্ডের নাম: | Retek |
| মডেল নম্বর: | ইস্পাত গিয়ার |
| MOQ.: | 1000pcs |
| মূল্য: | negotiable |
| বিতরণ সময়: | 14 দিন |

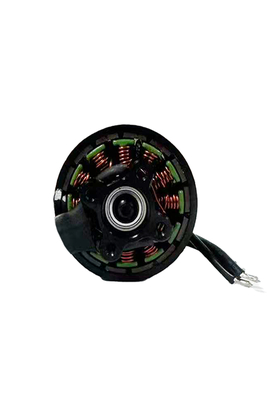

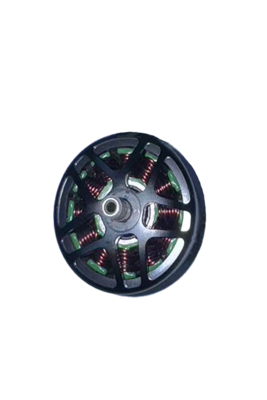

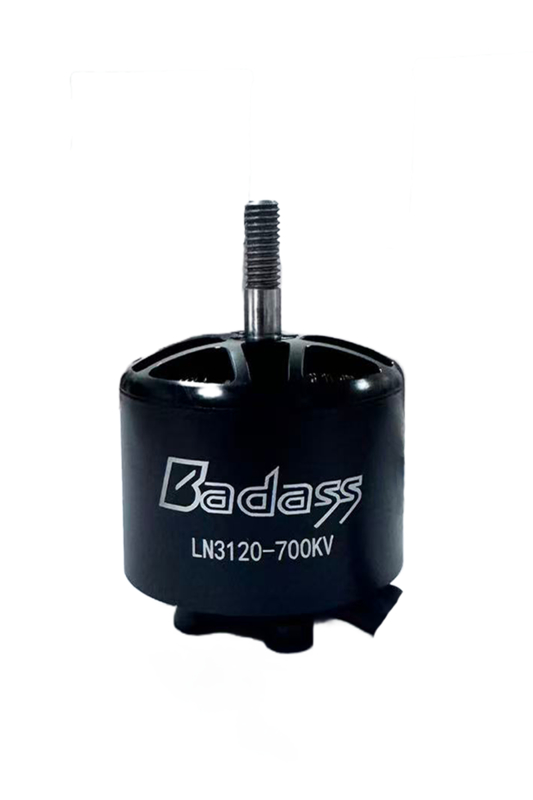

LN3120D24-002 is a motor specifically designed for model aircraft and other applications. It has electrical properties such as a rated voltage of 24VDC and a KV value of 700, with an approximate no-load speed of 700 revolutions per minute (RPM) at 1V voltage. At 24V, the theoretical no-load speed reaches 16,800±10% RPM. It has also passed the ADC 600V/3mA/1Sec withstand voltage test, with an insulation class of CLASS F. Its mechanical performance is also remarkable. At a load speed of 13,000±10% RPM, it corresponds to a current of 38.9A±10% and a torque of 0.58N·m.
General Specification:
|
|
| ব্র্যান্ডের নাম: | Retek |
| মডেল নম্বর: | ইস্পাত গিয়ার |
| MOQ.: | 1000pcs |
| মূল্য: | negotiable |
| প্যাকেজিং বিশদ: | 25 পিসি/কার্টন |
LN3120D24-002 is a motor specifically designed for model aircraft and other applications. It has electrical properties such as a rated voltage of 24VDC and a KV value of 700, with an approximate no-load speed of 700 revolutions per minute (RPM) at 1V voltage. At 24V, the theoretical no-load speed reaches 16,800±10% RPM. It has also passed the ADC 600V/3mA/1Sec withstand voltage test, with an insulation class of CLASS F. Its mechanical performance is also remarkable. At a load speed of 13,000±10% RPM, it corresponds to a current of 38.9A±10% and a torque of 0.58N·m.
General Specification:
